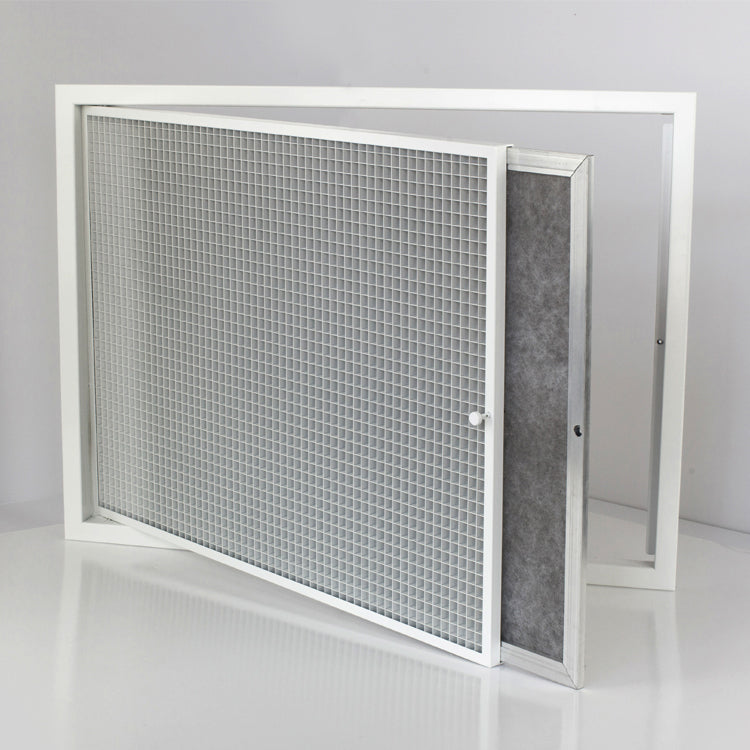

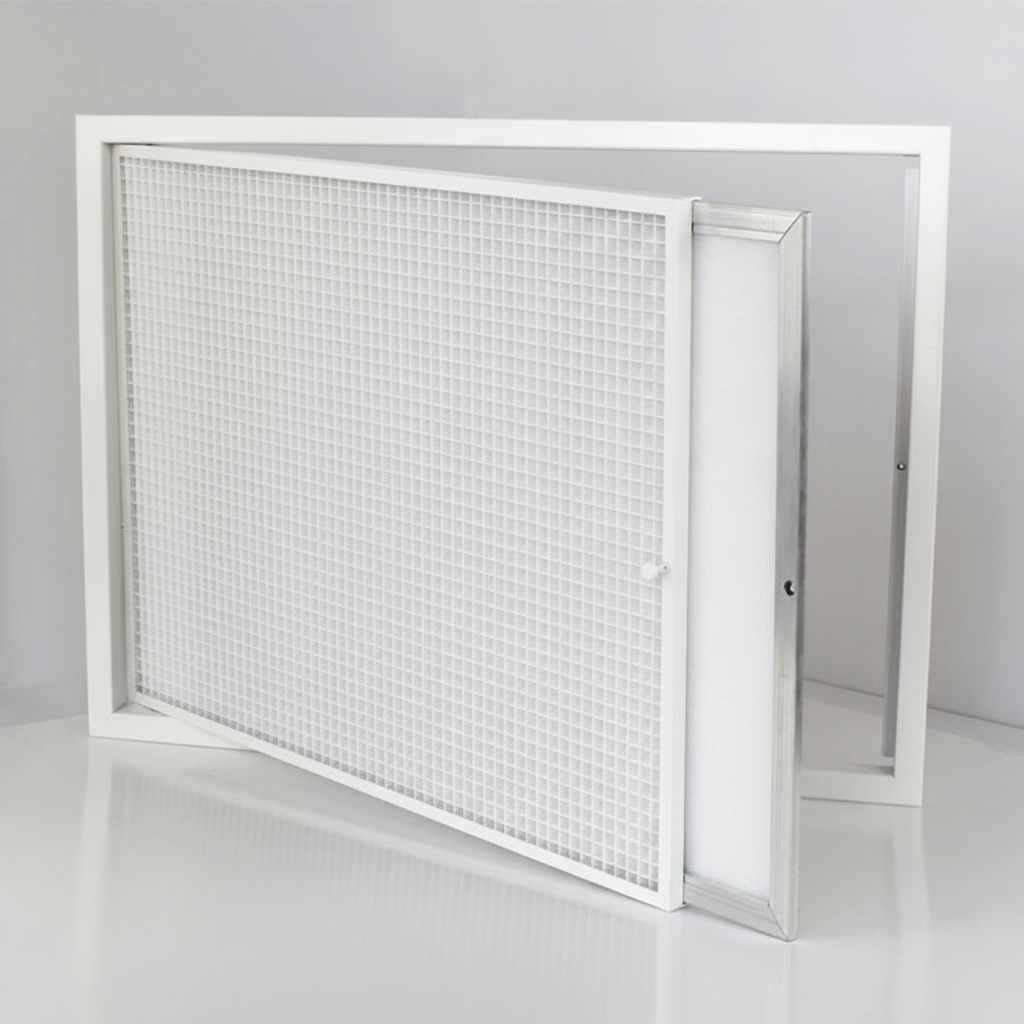

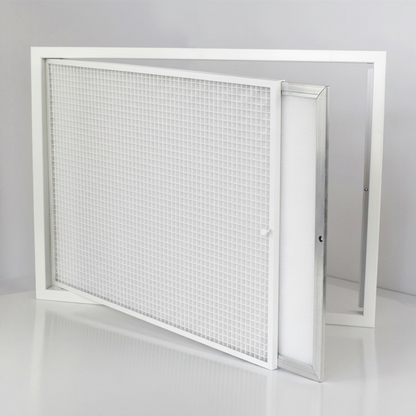

Hinged Eggcrate Return Air Grille with Filter

The Hinged Eggcrate Return Air Grille with Filter is a practical and durable solution for return air applications in residential and commercial HVAC systems. The hinged front frame allows quick and tool-free access to the filter for easy maintenance, while the classic eggcrate face pattern ensures consistent, low-resistance airflow.

Specifications:

• Color: White
• Frame: Hinged for easy filter access
• Face Pattern: Eggcrate (egg crate)
• Application: Return air — ceiling or wall installation
• Available Sizes: Multiple sizes available

Features:

• Tool-free hinged access for fast filter changes
• Integrated filter holder keeps filter securely in place
• Eggcrate face provides even air distribution and low pressure drop
• Suitable for standard return air ducting
• Clean white finish complements most ceiling and wall finishes
• G4 Grade filter is washable and replacable

Ideal for builders, HVAC contractors, and facility managers looking for a reliable, low-maintenance return air grille solution.

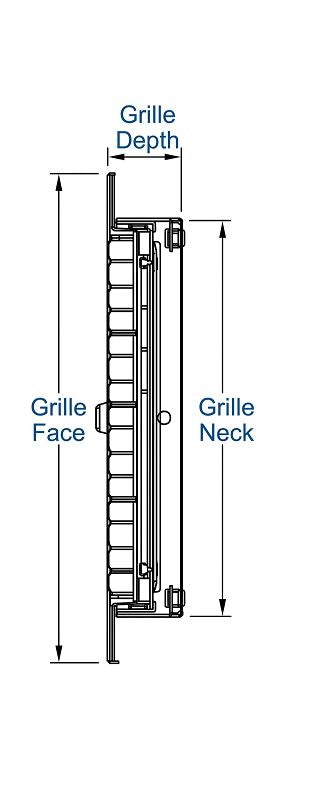

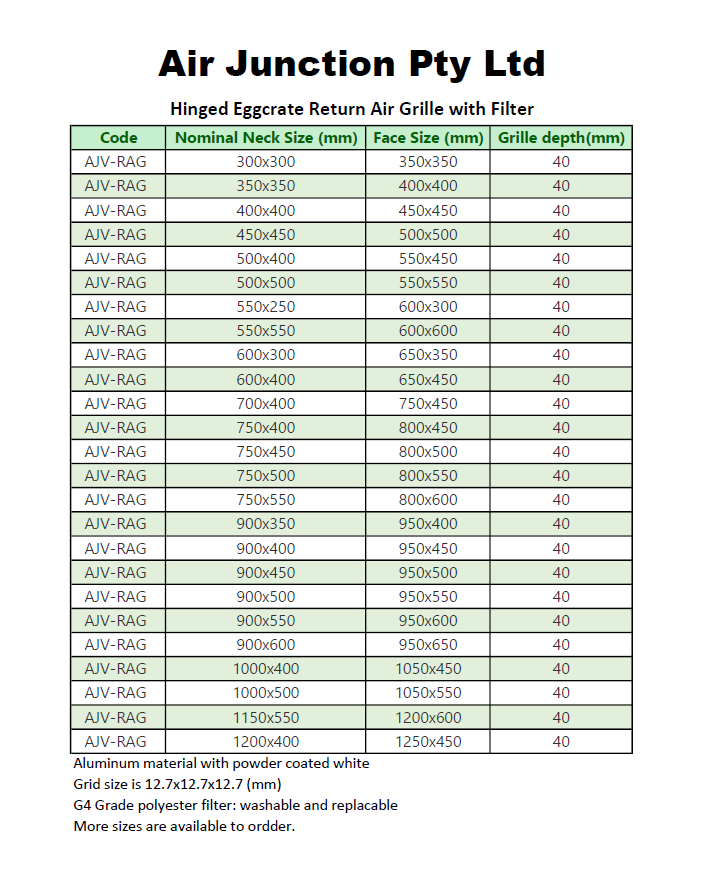

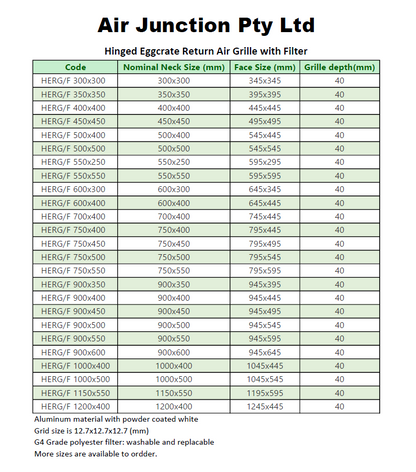

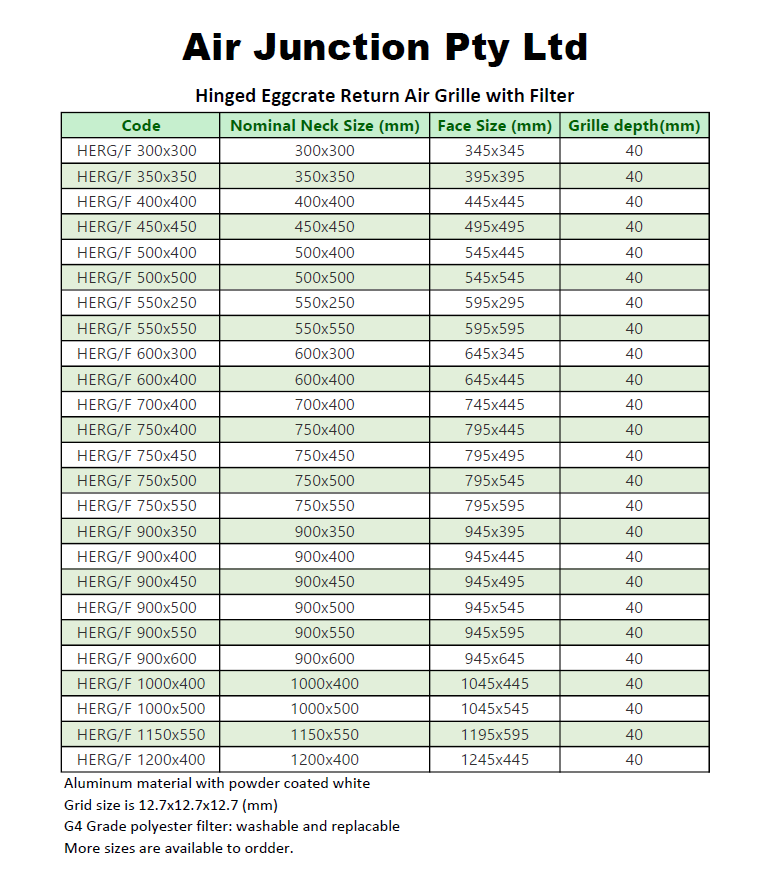

Nominal Neck Sizes are quoted for the size selection.

Grill Face Frame width is 25mm.
